ＴML 스트레인게이지, 콘크리트 PMF series

PMF시리즈몰드변형게이지



몰드 변형 게이지 PMF 시리즈는 콘크리트나 모르타르재 등에 매설하여 재하 시험 등에 사용하는 소형 몰드 변형 게이지입니다. 작은 시험체에도 매설 가능합니다. 베이스재에는내수성이있는슈퍼엔프라를사용했습니다. 측온 기능을 사용하면 변형과 온도를 동시에 측정할 수 있습니다. 표준 리드선 길이 이외에도, 원하시는 길이로 제작합니다. (주문생산)
※장기간의 변형 측정에는 변형계 [KM]가 적합합니다



Applicable specimen	Concrete, Mortar
Operational temperature	-20 to +60 ℃
Temperature compensation range	-
Bonding adhesive	Embedment
Backing	Special plastics
Element	Cu-Ni (foil)
Strain limit	-
Fatigue life at room temperature	-

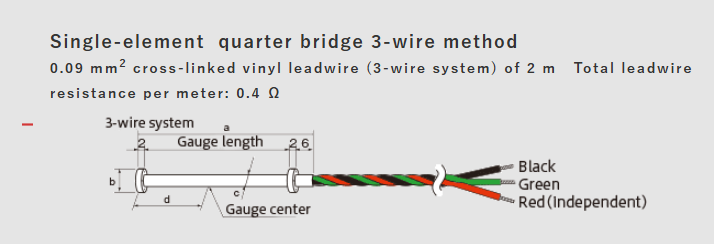

Type	Gauge length	a	b	c	d	Resistance value
	(mm)	(mm)	(mm)	(mm)	(mm)	(Ω)
PMFL-50-2LJRTA	50	60	φ8	φ4	27	120
PMFL-60-2LJRTA	60	70	φ8	φ4	32	120

* Orders accepted for 10 units at a time
* This is a made-to-order product

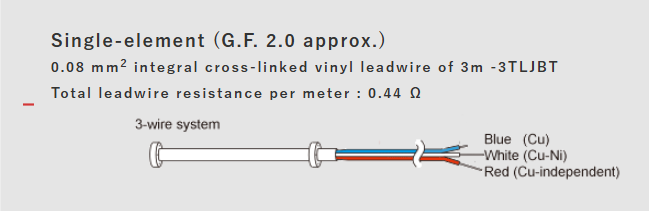

Type	Gauge length	a	b	c	d	Resistance
	(mm)	(mm)	(mm)	(mm)	(mm)	(Ω)
PMFL-50T-3TLJBT	50	60	Φ8	Φ4	27	120
PMFL-60T-3TLJBT	60	70	Φ8	Φ4	32	120



Each package contains 10 gauges.
These gauges are made to order.



PMF, PMFLS.pdf

0.82MB
