ＴML 스트레인게이지, 콘크리트 PMFLS series

PMFLS시리즈아스팔트용 몰드 변형 게이지



아스팔트에 매설하여 전압 등의 재하 시험 등에 사용하는 몰드 변형 게이지입니다. 베이스재에는, 내수성과 내열성이 있는 슈퍼 엔지니어링 플라스틱을 채용하고 있습니다. 아스팔트 매설 시 고온(200℃)에도 견딜 수 있습니다. 아스팔트용으로 온도 보상이 되어 있습니다.





Applicable specimen	Asphalt
Operational temperature	-20 to +60℃
Temperature compensation range	-
Bonding adhesive	Embedment
Backing	Super engineering plastics
Element	Cu-Ni alloy
Strain limit	-
Fatigue life at room temperature	-

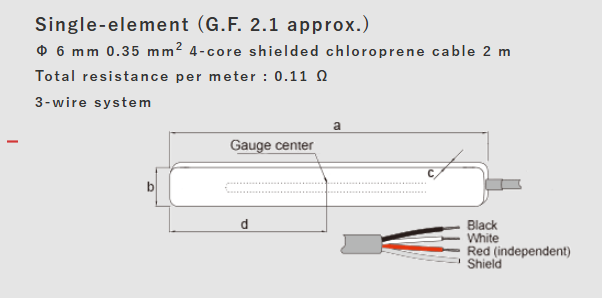

Type	Gauge	Gauge	Backing	Backing	Backing	Gauge	Resistance
	length	width	length	width	thickness	center	(Ω)
	(mm)	(mm)	a (mm)	b (mm)	c (mm)	d (mm)
PMFLS-60-50-2LTSC	60	1	120	13	Approx. 7	60	120
