ＴML 스트레인게이지, 콘크리트 FLM・WFLM series

FLM,WFLM시리즈메탈베이스변형게이지



콘크리트용 메탈 베이스 변형 게이지는 콘크리트로부터의 수분에 의한 절연 저하를 방지하기 위해 스테인리스 베이스를 사용한 변형 게이지입니다. 안

Applicable specimen	Concrete, Mortar
Operational temperature(℃)	-20 to +80 ℃
Temperature compensation range(℃)	+10 to +80 ℃
Applicable adhesive	PS
Backing	SUS304
Element	Ni-Cr
Strain limit at room temperature	0.5 % (5000 x 10-6 strain)
Fatigue life at room temperature	1 x 105 (±1000 x 10-6 strain)

정성이 뛰어나 장기간의 변형 측정에 적합합니다. 리드선을 붙이고 코팅을 한 방수형도 준비되어 있습니다.







Type	Gauge	Gauge	Backing	Backing	Backing	Resistance	Lead wire
	length	width	length	width	thickness	(Ω)	pre-attached
	(mm)	(mm)	(mm)	(mm)	(mm)

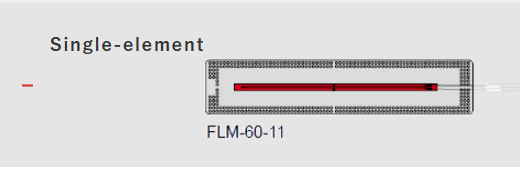

FLM-30-11	30	0.5	60	18	0.12	120	-
FLM-60-11	60	0.7	90	18	0.12	120	-







Type	Gauge	Gauge	Backing	Backing	Backing	Resistance	Lead wire
	length	width	length	width	thickness	(Ω)	pre-attached
	(mm)	(mm)	(mm)	(mm)	(mm)
WFLM-30-11-2LJQTA	30	0.5	60	18	4	120	3-wire 2m
WFLM-60-11-2LJQTA	60	0.7	90	18	4	120	3-wire 2m



FLM.pdf

0.79MB
