ＴML 스트레인게이지, 콘크리트 P series



P시리즈, 폴리에스테르 변형 게이지

폴리에스테르 변형 게이지 P시리즈는 폴리에스테르 수지를 기반으로 한 선 게이지입니다. 콘크리트나 모르타르, 암석 등의 표면 변형의 측정에 사용합니다.





Applicable specimen	Concrete, Mortar
Operational temperature (℃)	-20 to +80 ℃
Temperature compensation range (℃)	+10 to +80 ℃
Applicable adhesive	CN-E, RP-2, PS
Backing	Polyester
Element	Cu-Ni (wire)
Strain limit at room temperature	2 % (20000 x 10-6 strain)
Fatigue life at room temperature	1 x 105 (±1000 x 10-6 strain)



특장점
콘크리트 테스트 피스 게이지 부착



동영상 서비스가 종료되어 해당 콘텐츠를 재생할 수 없습니다.







동영상 서비스가 종료되어 해당 콘텐츠를 재생할 수 없습니다.

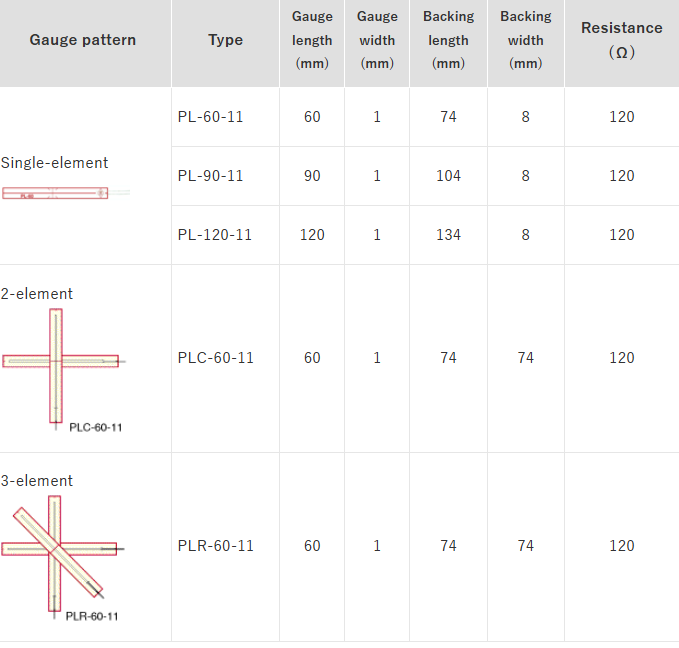

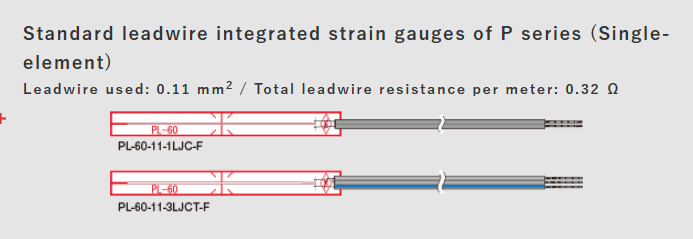

Application	Product name	Lead wire code	Operating temperature	Leadwire code exampled
			(℃)
General use (temperature unchanged during measurement)	Paralleled vinyl	LJB-F	-20 to +80	PL-60-11-3LJB-F
	Paralleled vinyl	LJC-F		PL-60-11-3LJC-F
General use	3-wire paralleled vinyl	LJBT-F	-20 to +80	PL-60-11-3LJBT-F
	3-wire paralleled vinyl	LJCT-F		PL-60-11-3LJCT-F
1-gauge 4-wire system	Polypropylene 4-wire parallel wire	LQM-F	-20 to +100	PL-60-11-3LQM-F
	(with modular)

* Strain gauges of 2-element / 3-element rosette are not available with integral lead wire.
* Only the leadwires using lead-free solder are available for strain gauges with CE marking.
