ＴML 스트레인게이지, 아스팔트 표면 SSM-360 series



SSM-360 시리즈 아스팔트 표면 변형 게이지





포장 노면의 표면에 부착함으로써, 윤하중에 의해 발생하는 표층 표면의 변형 분포를 측정할 수 있습니다.

본 연구에서 개발한 변형측정장치에서 측정한 포장종단방향에 발생하는 변형과 다층탄성해석보다 구한 변형은 거의 일치함에 따라 포장표면에 발생하는 변형을 비교적 좋은 정밀도로 측정할 수 있다.



Applicable specimen	Concrete, Asphalt
Operational temperature(°C)	-20 to +80°C
Operational temperature	＋10 to ＋80℃
Applicable adhesive	PS, RP-2
Backing	Special plastics
Element	Cu-Ni
Strain limit	-
Fatigue life at room temperature	-

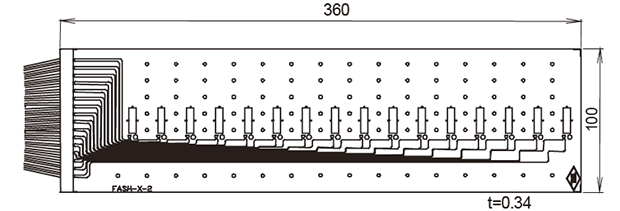

SSM-360-X









SSM-360-Y







Type	Gauge	Gauge	Backing	Backing	Direction	number of elements	Resistance
	length	width	length	width			(Ω)
	(mm)	(mm)	(mm)	(mm)
SSM-360-X	10	0.9	360	100	X	16	120
SSM-360-Y	10	0.9	360	100	Y	16	120
