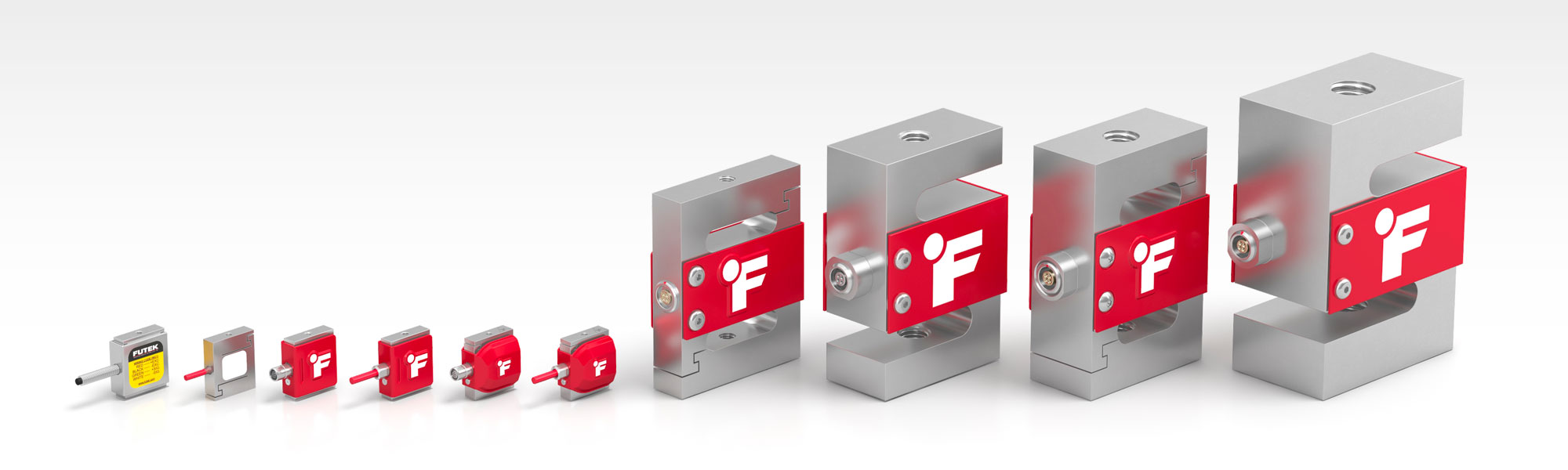

FUTEK , S-BEAM LOADCELL





LSB200



LSB200은 다양한 용도에 적합한 소형 고성능 S 빔 Jr.® 로드 셀입니다. 고정밀 로드 셀의 높이는 0.75인치에 불과해 좁은 환경과 공간이 제한된 애플리케이션에 적합합니다.

통합 과부하 보호 기능을 갖춘 이 초경량 로드 셀은 10g에서 250g까지 다양한 용량으로 제공되며, 작은 공간에서도 높은 내구성과 정확성을 요구하는 FUTEK의 가장 인기 있는 센서 중 하나입니다.

LSB200은 비자성 버전, 진공 호환성, 높은 IP 등급, 고온 보정 기능을 갖춘 버전으로도 제공됩니다. OEM 애플리케이션에 맞게 수정할 수도 있습니다. FUTEK는 요청 시 DFM/DFX 단계에서 애플리케이션 및 엔지니어링 리소스를 제공합니다.

Features

• Optimized for Low Capacities: 10 to 250 g (0.1 to 2.5 N)

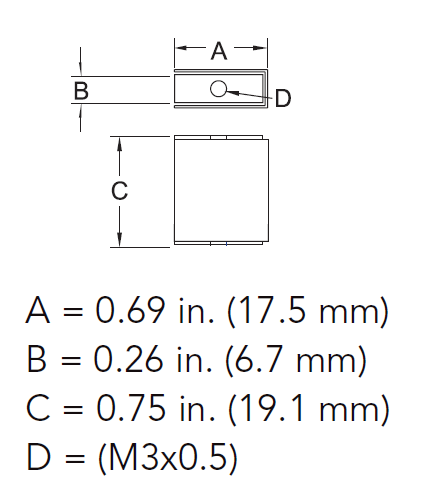

• Small Footprint: only 0.75in (H) × 0.26in (W) × 0.69in (L) (19.1mm × 6.7mm × 17.5mm)
• High Accuracy: nonlinearity starting at ±0.1%.
• Wide range of thermal performance:  from –60 to 200°F (–50 to 93°C).
• Lightweight: 0.7 oz (19.3 g)
• 10X Overload Protection:  1000% overload stop capability for tension and compression
• Vibration Resistance: 20-2000 Hz, 0.01g²/Hz per MIL-STD-810E
• Shock Resistance: 500 g per IEC60068-2-27

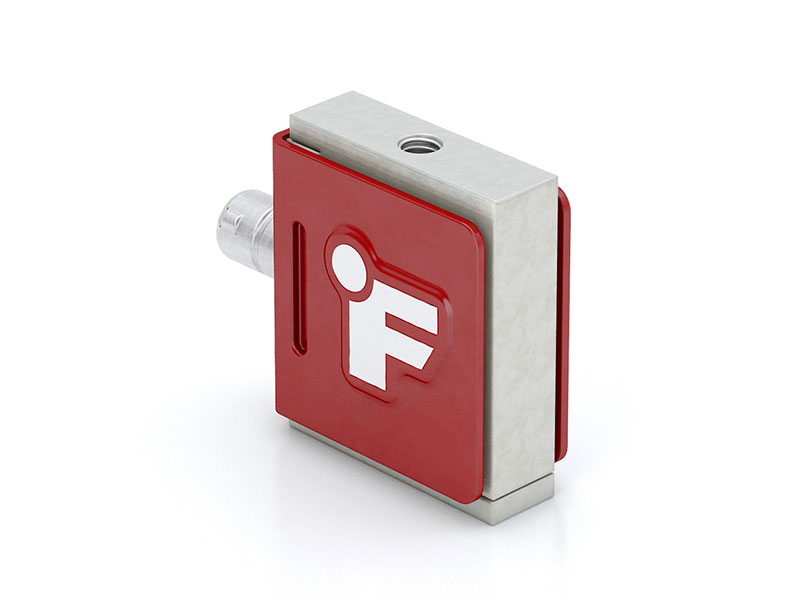

LSB201

LSB201 S 빔 주니어 ® 로드 센서는 작은 설치 공간을 가진 고성능 및 매우 내구성이 뛰어난 힘 센서입니다. 이 컴팩트하고 가벼운 센서는 통합 과부하 보호, 충격 저항성을 갖추고 있으며 250g에서 100lb까지의 용량을 제공합니다. 이 센서는 작은 설치 공간, 고성능, 정확성을 요구하는 다양한 동적 장력 및 압축 응용 분야에 이상적입니다.

이 모델은 진공 호환성, 더 높은 IP 등급, 고온 보정 기능을 갖춘 버전으로도 제공됩니다. LSB201은 OEM 애플리케이션에 맞게 수정할 수도 있습니다. FUTEK는 요청 시 DFM/DFX 단계에서 애플리케이션 및 엔지니어링 리소스를 제공합니다.

Features



• Wide Range of Capacities: 250 g to 100 lb (2.5 N to 444 N)
• Small Footprint: 0.75in (H) × 0.3in (W) × 0.65in (L) (19.1mm × 7.6mm × 16.5mm)
• High Accuracy: nonlinearity up to ±0.1% R.O.
• Wide range of thermal performance:  from –60 to 200°F (–50 to 93°C)
• Lightweight:  0.8oz (22.6g)
• Up to 10X Overload Protection:  1800% of RO (250 g) and 1000% of RO (1-25 lb) overload stop capability for tension and compression; 200% of RO (50–100 lb) tension only
• Highly Flexible Cable: 29 AWG, 4-conductor, 5-foot (1.5m) cable with spiral shielding and a silicone outer jacket for protection against EMI interference
• Vibration Resistance: 20-2000 Hz, 0.01g²/Hz per MIL-STD-810E
• Shock Resistance: 500 g per IEC60068-2-27

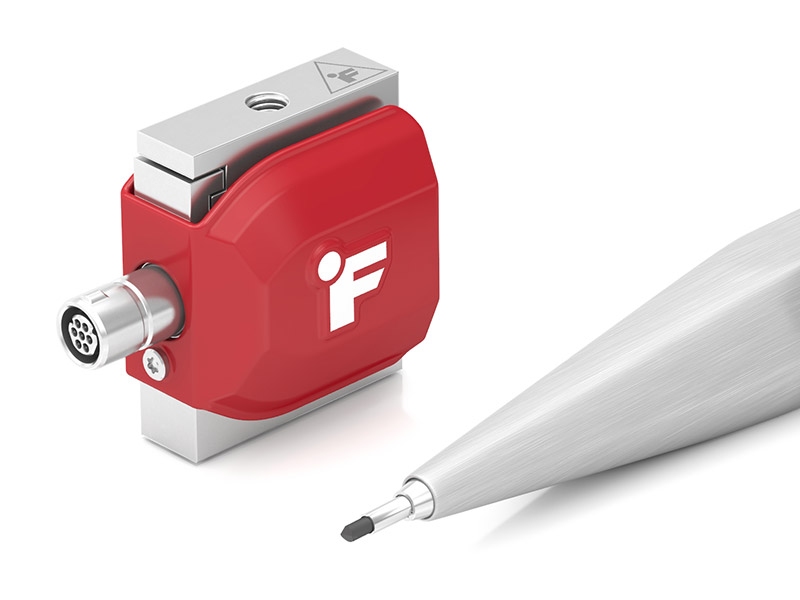

LSB205

타의 추종을 불허하는 품질과 견고한 구조로 LSB205는 매우 탄력적이고 오래 지속됩니다. 이 센서는 1억 회 이상의 피로 사이클을 고장 없이 완전히 반전시키는 것으로 테스트되었습니다. 또한 시스템 가동 시간이 길어지고 작동 수명이 훨씬 길어질 수 있도록 매우 높은 수준의 내재적 내구성으로 설계되었습니다.

LSB205 , 1 lb , S-Beam Jr.® Load Cell 2.0 , Overload Protection w/ Integrated TEDS IEEE1451.4 Recognition & Temperature Sensor , RoHS Compliant, Material - 17-4 PH S.S. , M3x0.5-Thread , 7 Pin Quick Disconnect "Break Away" Nano Receptacle



Features

• Dimensions:  0.75” H x 0.65” W x 0.30” D (19.05 mm × 16.5 mm x 7.6 mm)
• Force measurement capacity: 250 g to 100 lbs.
• Fatigue-rated for 100+ million cycles.
• New generation design with increased natural frequency
• Integrated up to 1800% of RO overload protection for safe operation.
• Robust case design and heat-treated, aerospace-grade stainless steel optimizes durability, linearity, and off-center loading capabilities.
• Exceptional non-repeatability (±0.05% of RO).
• Highly shock and vibration-resistant (500G) per IEC60068-2-27, performs exceedingly well in high-vibration environments.
• Integrated IEEE1451.4 TEDS Auto Recognition minimizes setup errors.
•

lsb201.pdf

0.16MB



 LSB206

LSB206은 소형 S Beam Jr.® 로드셀로, 소형 패키지에 완전한 디지털 SPI 및/또는 UART 출력을 제공합니다. 이 제품은 아날로그 신호를 디지털 출력으로 변환하는 초저전력, 초miniature 전자 장치가 내장된 고성능 올인원 솔루션으로, 외부 증폭기와 아날로그-디지털 변환기가 필요 없습니다. LSB206은 M3x0.5 암나사선을 갖추고 있으며 장력과 압축 방향 모두에서 최대 10배의 과부하 보호 기능을 내장하고 있습니다.

이 놀랍도록 작은 로드 셀은 임베디드 애플리케이션에서 UART 또는 SPI 버스를 통해 마이크로컨트롤러와 직접 통신하므로 대용량 PLC, 자동화 및 시스템 통합 애플리케이션에서 사용할 수 있는 가능성을 열어줍니다.

Features

• Embedded digital signal conditioner - SPI and/or UART available;
• Digital output of up to 1,300 samples per second (SPS) and up to 15 Bits of Noise-Free Resolution (NFR);
• Low power consumption of 78mW;
• High-performance tension and compression load cell with nonlinearity and hysteresis of ±0.1% of R.O. (Rated Output);
• Lightweight with 14 grams only and miniature size in a compact package of 0.75in [19.05mm] height and 0.38in [9.5mm] width;
• Integrated overload protection of impressive 1000% of Rated Output;
• Notable non-repeatability of ±0.05% of R.O.;
• Shock resistant: 500 g per IEC60068-2-27



LSB210



LSB210 S 빔 주니어® 로드 셀은 고성능 방수 및 압축 미니어처 로드 셀입니다. 높은 정확도, 내구성, 통합 과부하 보호 기능을 갖춘 이 잠수 센서는 100g에서 100파운드(1N - 445N)까지 다양한 용량으로 제공됩니다.

IP68 등급의 장치로서 방수 하중 센서는 성능과 정확성을 저하시키지 않으면서 액체나 습기가 있는 환경에서도 안정적으로 작동할 수 있습니다.

LSB210 수중* 로드셀은 진공 호환성, 높은 IP 등급, 고온 보상 기능을 갖춘 버전으로도 제공됩니다.

Features

• Up to 10 times the overload protection
• Light weight shear beam load cell
• Loads up to 100 lb (445 N)
• Miniature size
• Submersible load cell

lsb210.pdf

0.10MB

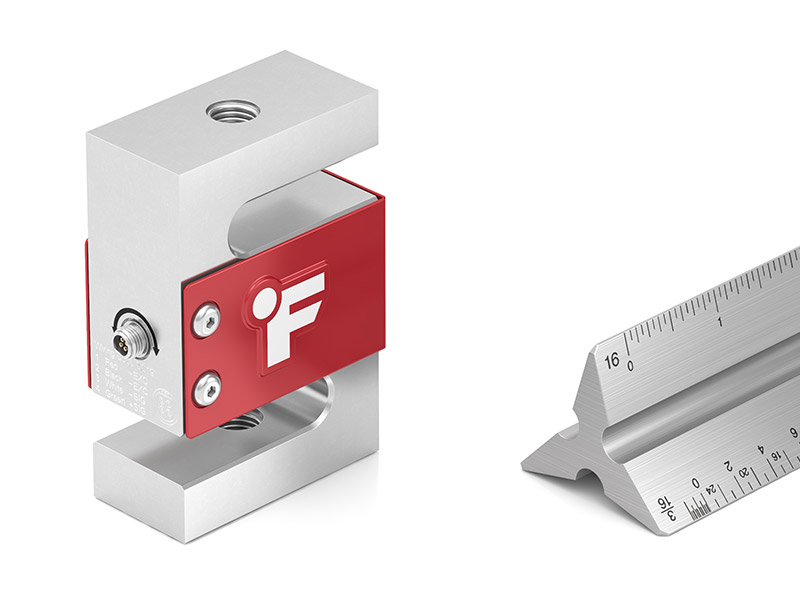

LSB302



LSB302는 다양한 응용 분야에 적합한 작고 정확도 높은 로드 셀입니다. 양극 산화 처리된 알루미늄 구조로 만들어졌으며, 여성용 나사산이 있으며 25에서 300파운드 사이의 용량으로 제공됩니다. 이 모델에는 케이블 연결과 분리가 용이한 통합 커넥터가 있습니다. 일부 용량에는 통합 케이블이 포함되어 있습니다.

LSB302는 반잠수식 기능을 갖춘 맞춤형 버전으로 제공되어 습한 환경에서의 응용뿐만 아니라 진공 호환성, 높은 IP 등급, 고온 보정 기능을 갖춘 버전에도 적합합니다.

Features

• Up to 10 times the overload protection
• For in line use in both tension and compression
• Notable nonlinearity
• Connector or robust cable strain relief

lsb302.pdf

0.10MB

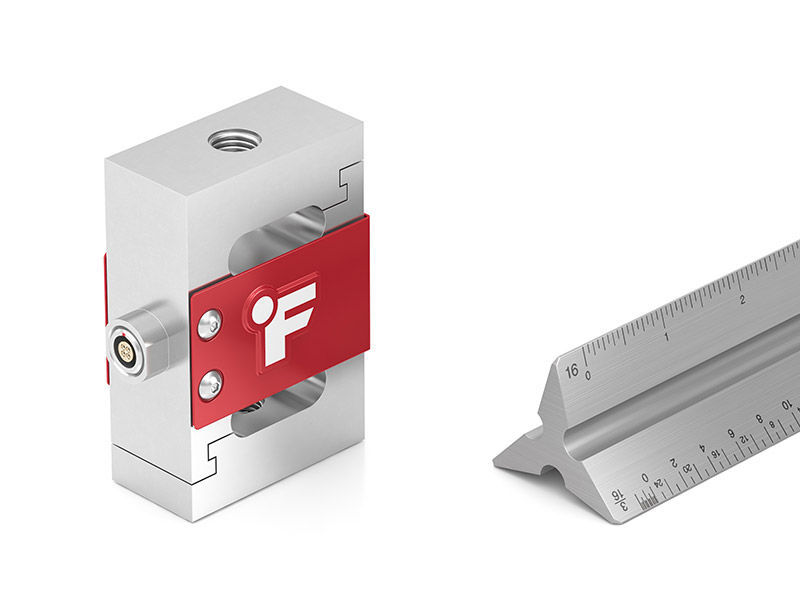

LSB350





LSB350은 500파운드에서 1000파운드까지의 용량으로 제공되는 소형 고성능 로드 셀입니다. 양극 산화 처리된 알루미늄으로 제작되어 미터 크기의 암나사를 제공하며 케이블 설치 및 유지보수를 용이하게 하는 4위치 마이크로 커넥터가 포함되어 있습니다.

높은 정확도와 열적으로 보상된 로드 셀은 온도 변동이 큰 중요한 애플리케이션에 적합합니다. 또한 진공 호환성, 더 높은 IP 등급, 고온 보상이 가능한 버전에서도 사용할 수 있습니다.

Features

• For in line use in both tension and compression
• Notable nonlinearity
• Connector or robust cable strain relief

LSB352



LSB352는 높은 정확도와 통합 과부하 정지 기능을 갖춘 컴팩트 로드 셀입니다. 고품질 스테인리스 스틸로 제작되어 여성용 나사산이 특징입니다.

포스 센서는 500~1000파운드 사이의 용량으로 제공되며 작동 온도 범위가 넓어 다양한 용도에 적합합니다. 이 모델은 진공 호환성, 더 높은 IP 등급, 고온 보정 기능을 갖춘 버전으로도 제공됩니다.

Features

• Up to 5 times overload protection
• For in line use in both tension and compression
• Notable nonlinearity
• Robust cable strain relief
