TML 캔티레버 변위계 CE



캔틸레바형변위계CE2mm~10mm

캔틸레바에 변형 게이지를 장착한 변위계입니다. 변위에 대해 비교적 응답 주파수가 높고 또한 구조가 단순하기 때문에 안정적인 측정이 가능합니다. 좁은 공간에서 설치가 가능합니다.

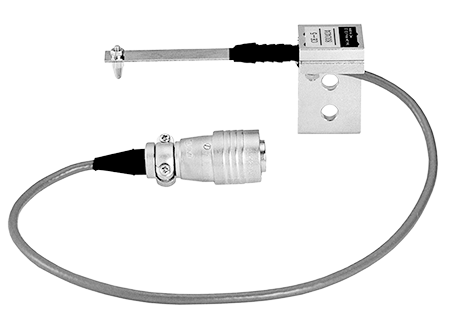

캔틸레바형 변위계 CE
특장점
높은 응답성
우수한 안정성
취급이 간단함



Type	Capacity	Rated output	Sensitivity	Non-linearity	Temperature range
			(x10-6strain/mm)
CE-2	2mm	Approx. 2.5mV/V	Approx. 2500	1%RO	0 to +40℃
CE-5	5mm	(5000x10-6strain)	Approx. 1000
CE-10	10mm		Approx. 500









• Measurement moves in the minus direction when the contact tip is pushed inward.
