TML 클립형 변위계 UB-A, UB, RA-L, RA

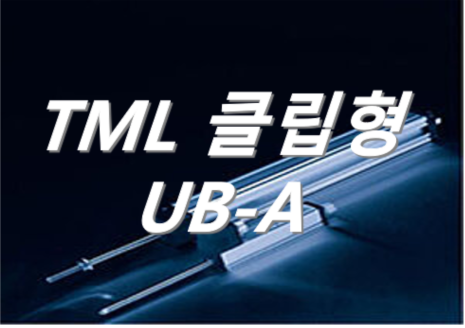

클립형변위계 UB-A



금속 재료의 COD(균열 개구 변위) 측정을 목적으로 한 변위계입니다.
선단 형상은 ASTM 규격에 준거한 것입니다.



Type	Capacity	Rated output	Sensitivity	Non-linearity	Temperature range
			(x10-6 strain/mm)
UB-5A	5 (3 to 8)mm	Approx. 2.5 mV/V	Approx. 1000	1 %RO	0 to +40 ℃
		(5000x10-6 strain)

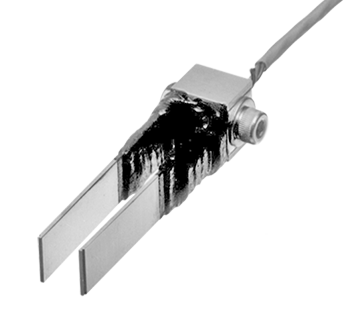

클립형변위계UB2/5mm



금속 재료의 COD(균열 개구 변위) 측정을 목적으로 한 변위계입니다.



Type	Capacity	Rated output	Sensitivity	Non-linearity	Temperature range
			(x10-6 strain/mm)
UB-2	2 (2 to 4) mm	Approx. 2.5 mV/V	Approx. 2500	1 %RO	0 to +40 ℃
UB-5	5 (2 to 7) mm	(5000x10-6 strain)	Approx. 1000

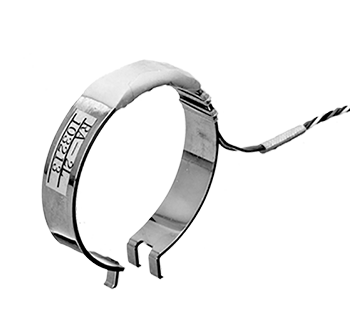

클립형 저온용변위계 RA-L 2/5mm

금속 재료의 저온 분위기에서의 COD(균열 개구 변위) 측정을 목적으로 한 변위계입니다.



Type	Capacity	Rated output	Sensitivity	Non-linearity	Temperature range
			(x10-6 strain/mm)
RA-2L	2 (2 to 4)mm	Approx. 1 mV/V	Approx. 1000	1 %RO	-196 to +40 ℃
		(2000x10-6 strain)
RA-5L	5 (2 to 7)mm	Approx. 1.5 mV/V	Approx. 600
		(3000x10-6 strain)

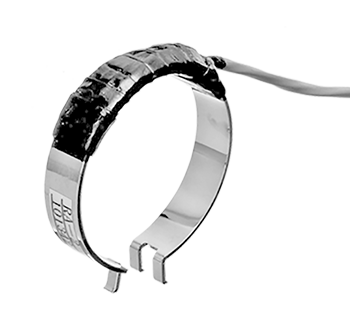

클립형변위계  RA2/5mm

금속 재료의 COD(균열 개구 변위) 측정을 목적으로 한 변위계입니다.



Type	Capacity	Rated output	Sensitivity	Non-linearity	Temperature range
			(x10-6 strain/mm)
RA-2	2 (2 to 4)mm	Approx. 1 mV/V	Approx. 1000	1 %RO	0 to +40 ℃
		(2000x10-6 strain)
RA-5	5 (2 to 7)mm	Approx. 1.5 mV/V	Approx. 600
		(3000x10-6 strain)
