TML 스트레인게이지, 온도게이지 TF

TF 시리즈 온도 게이지

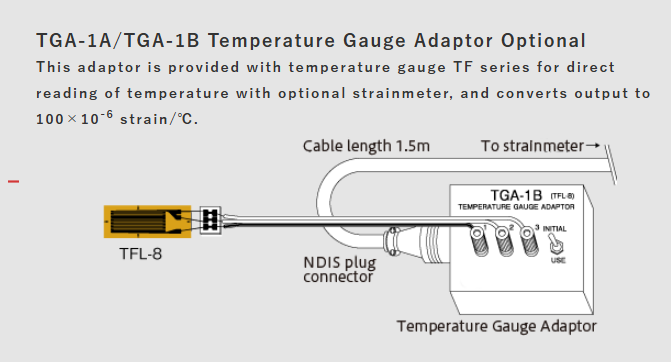

온도 게이지 TF 시리즈는 변형 게이지와 마찬가지로 구조물 표면에 접착하여 표면 온도를 측정합니다. 온도 게이지용 어댑터(TGA)를 사용하면 상대 온도는 물론 실제 온도 측정이 가능합니다.



Applicable specimen	General
Operational temperature	-20 to +200°C
Temperature compensation range	-
Applicable adhesive	NP-50B, CN, C-1
Backing	Polyimide
Element	Ni alloy
Strain limit	-
Fatigue life at room temperature	-



Gauge patternTypeGauge length(mm)Gauge width(mm)Backing length(mm)Backingwidth (mm)Resistance (Ω)Sensitivity (Ω/℃)

	TFL-2-60	2	1.9	6.1	3.5	60	0.34 approx.
	TFL-3-60	3	3.2	8.5	5	60	0.34 approx.
	TFL-6-60	6	2.6	12.4	4.5	60	0.34 approx.
	TFL-8	8	3.5	14	5.5	120	0.68 approx.





Type of Adaptor	Type	Temperature (℃)	Sensitivity (x10-6 strain/℃)	Accuracy (℃)	Bridge mode	Dimensions (W)	Weight (g)
						x (H)
						x (D)
TGA-1A	TFL-2-60	-20 to +200	100	±1,or less	Full bridge	100 x 40 x 70	370
	TFL-3-60
	TFL-6-60
TGA-1B	TFL-8
