TML 스트레인게이지, 방수용



WF시리즈방수형변형게이지

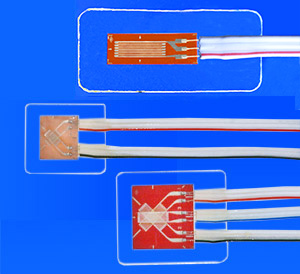

방수형 변형 게이지 WF 시리즈는 F 시리즈 게이지에 비닐 리드선을 부착하고 에폭시 수지로 코팅한 변형 게이지입니다. 이 수지는 투명하고 가요성이 뛰어나 접착 작업이 간단합니다.

Applicable specimen	Metal, Glass, Ceramics
Operational temperature(℃)	0 to +80℃
Temperature compensation range(℃)	+10 to +80℃
Applicable adhesive	CN, P-2
Backing	Epoxy
Element	Cu-Ni
Strain limit	3% (30000 x 10-6 strain)
Fatigue life at room temperature	3 x 104 (±1500 x 10-6 strain)





Type	Gauge		Backing			Resist-ance	Lead wire pre-attached	Type name of lead wire preattached
	length	width	length	width	thickness	(Ω)
	(mm)	(mm)	(mm)	(mm)	(mm)
WFLA-3-11	3	1.7	17	8	1.5	120	Paralleled 1m	-1LDBB
WFLA-3-17							Paralleled 3m	-3LDBB
WFLA-3-23							Paralleled 5m	-5LDBB
							3-wire 3m	-3LDBTB
							3-wire 5m	-5LDBTB
WFLA-3-350-11	3	3.2	17	8	1.5	350	Paralleled 1m	-1LDBB
WFLA-3-350-17							Paralleled 3m	-3LDBB
WFLA-3-350-23							Paralleled 5m	-5LDBB
WFLA-6-11	6	2.2	25	11	1.5	120	Paralleled 1m	-1LDBB
WFLA-6-17							Paralleled 3m	-3LDBB
WFLA-6-23							Paralleled 5m	-5LDBB
							3-wire 3m	-3LDBTB
							3-wire 5m	-5LDBTB



Type	Gauge		Backing			Resist-ance	Lead wire pre-attached	Type name of lead wire preattached
	length	width	length	width	thickness	(Ω)
	(mm)	(mm)	(mm)	(mm)	(mm)
WFCA-3-11	3	1.7	19	16	1.5	120	Paralleled 1m	-1LDBB
WFCA-3-17							Paralleled 3m	-3LDBB
WFCA-3-23							Paralleled 5m	-5LDBB
							3-wire 3m	-3LDBTB
							-wire 5m	-5LDBTB
WFCA-6-11	6	2.3	25	21	1.5	120	Paralleled 1m	-1LDBB
WFCA-6-17							Paralleled 3m	-3LDBB
WFCA-6-23							Paralleled 5m	-5LDBB
							3-wire 3m	-3LDBTB
							3-wire 5m	-5LDBTB

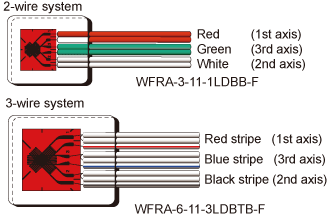

TypeGaugeBackingResist-ance(Ω)Lead wire pre-attachedType name of lead wire preattachedlength(mm)width(mm)length(mm)width(mm)thickness(mm)

WFRA-3-11 WFRA-3-17 WFRA-3-23	3	1.7	19	16	1.5	120	Paralleled 1m Paralleled 3m Paralleled 5m 3-wire 3m 3-wire 5m	-1LDBB -3LDBB -5LDBB -3LDBTB -5LDBTB
WFRA-6-11 WFRA-6-17 WFRA-6-23	6	2.3	25	21	1.5	120	Paralleled 1m Paralleled 3m Paralleled 5m 3-wire 3m 3-wire 5m	-1LDBB -3LDBB -5LDBB -3LDBTB -5LDBTB
