TML 스트레인게이지, 목재 PFLW

PFLW,PLW 시리즈 목재 장기 측정용 게이지

폴리에스테르변형게이지에금속박을배접한새로운구조의장기측정용변형게이지입니다. 금속박을배접하여목재의습기에의한변형게이지에대한영향을억제할수있습니다. 지금까지 어려웠던 목재의 장기 측정을 실현합니다.



Applicable specimen	Wood
Operational temperature	-20 to +80 ℃
Temperature compensation range	+10 to +80 ℃
Applicable adhesive	PS
Backing	Polyester
Element	Cu-Ni (wire)
Strain limit	2% (20000 x 10-6 strain)
Fatigue life at room temperature	1 x 105 (±1000 x 10-6 strain)

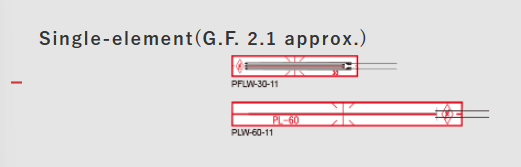

Type	Gauge	Gauge	Backing	Backing	Resistance
	length	width	length	width	(Ω)
	(mm)	(mm)	(mm)	(mm)
PFLW-30-11	30	2.3	40	7	120
PFLW-30-11	60	1	74	8	120



Purpose	Lead wires	Lead wire symbol	Operational temperature range	Gauge type exampled
			(℃)
General measurement	2-wire parallel vinyl wire	LJC-F	－20 to ＋80	PFLW-30-11-3LJC-F
(no temperature change)
General measurement	3-wire parallel vinyl wire	LJCT-F	－20 to ＋80	PFLW-30-11-3LJCT-F
Medium/high temperature	3-wire parallel special vinyl wire	LXT-F	－20 to ＋150	PFLW-30-11-3LXT-F
1-gauge 4-wire method	Polypropylene 4-wire parallel wire	LQM-F	－20 to ＋100	PFLW-30-11-3LQM-F
	(with modular)









Type	Gauge	Gauge	Backing	Backing	Resistance	Lead wire	Type name
	length	width	length	width	(Ω)	pre-attached	of lead wire
	(mm)	(mm)	(mm)	(mm)			preattached
PFLW-30-11	30	2.3	40	7	120	Paralleled 1m	-1LJC-F
						Paralleled 3m	-3LJC-F
						Paralleled 5m	-5LJC-F
						3-wire 3m	-3LJCT-F
						3-wire 5m	-5LJCT-F
PFLW-30-11	60	1	74	8	120	Paralleled 1m	-1LJC-F
						Paralleled 3m	-3LJC-F
						Paralleled 5m	-5LJC-F
						3-wire 3m	-3LJCT-F
						3-wire 5m	-5LJCT-F
