DSIC-1 & DSIC-2 Series Inclinometers
Single axis or Dual axis DSIC with 5, 15 or 60 degree angular range
The DSIC Series is a range of single and dual axis gravity referenced digital output servo inclinometers with total error band of less than 0.08 degrees over -20°C to +70°C. Suitable for use in a variety of industrial applications where high precision angular measurements are required, and in rugged and robust applications where high levels of vibration and mechanical shock up to 1250g may be encountered.
Models are available in a variety of angular ranges from +/-5° to +/-60° with RS485 ASCII outputs and electrical terminations are via a connector.
| Axis | 1, 2 |
| Resolution (Degrees) | 0.001° |
| Degree | ±5°, ±15°, ± 30° |
| Frequency response (Hz) | 20 |
| Sensor Output Type | Digital |
| Output Details | RS485 (ASCII) |
| Operating Temperature Range °C | -20 to +70 |
| IP Rating | IP65 |
- Resolution 0.001°
- Total accuracy < 0.08° over -20°C to +70°C
- Mechanical shock 1,000g 0.5ms half sine
- Industry-standard RS485 output
- 19-bit analog to digital conversion
- 9 to 18 or 18 to 36 VDC unregulated supply options
- Closed loop servo inclinometer sensing element
- Dynamic filtering, allowing fast response with high vibration rejection
- Built-in temperature sensing and active compensation
- User-configurable output bandwidth
- Wide range of bus speeds supported
- Non-volatile configuration memory
- Ordnance Aiming Systems
- Rail track monitoring
- Optical sighting equipment
- Seismic and civil engineering analysis
- Precision platform level control
- Electrical Cable (1m to 60m)
- DTI
- Power Supply
- DSIC Base Station
- Mating Connector

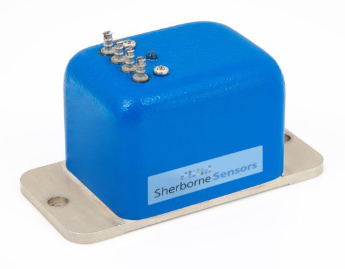

LSI Series ±14° to ±90°
Single Axis Inclinometer, ±15Vdc input, voltage o/p, pin
The LSI Series is a range of gravity-referenced servo inclinometers that are used in a variety of industrial applications where high-precision angular measurements are required.
Models are available in a variety of ranges from +/-14.5 degrees to +/-90 degrees with low impedance output voltage signals. Electrical terminations are via solder pins.
AxisDegreeSensor Output TypeOutput DetailsExcitation VoltageOperating Temperature Range °CIP Rating
| Axis | 1 |
| Degree | ±14.5°, ±30°, ± 90° |
| Sensor Output Type | Voltage |
| Output Details | +/- 5 VDC |
| Excitation Voltage | +/- 15 OR +9 to 36 |
| Operating Temperature Range °C | -20 to 80 |
| IP Rating | IP64 |
- Available ranges from ±14.5° to ±90°
- Resolution to 2 arc second (0.0006°)
- High level ±5 VDC output proportional to sine of the angle of tilt
- Electrical terminations via solder pins
- Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
- Environmentally sealed to IP65
- Continuous operation in temperatures of -18°C to +70°C
- Rugged construction with high reliability
- Optional power supplies and display indicators
- Custom design and manufacturing capabilities are available to meet customers specific application requirements
- Level control of machines and structures
- Safety control of cranes and lifting equipment
- Civil engineering studies
- Electrical Cable (1m to 60m)
- DTI
- Power Supply
- Mating Connector
LSOC Series ±1° to ±90°
LSOC_P L Inclinometer Voltage output, connector termination ±1° to ±90°
The LSO series is a high-precision gravity-referenced servo inclinometer used in a variety of industrial applications. Models are available in a variety of angular ranges each with low impedance output signals. Electrical terminations are via a 6-way bayonet lock connector (LSOC) or solder pins (LSOP).
The LSO series is extremely robust and will withstand shocks over 1500g. The design is well-proven with many thousands in use throughout the world in the most demanding of applications.
| Weight | .40 g |
| Dimensions | 92 × 42 × 40.76 mm |
| Axis | 1 |
| Degree | ±1°, ±3°, ±14.5° , ±30°, ±47°, ±90° |
| Resolution (arc seconds) | 0.1, 0.2, 1.0, 2.0, 4.0 |
| Frequency response (Hz) | 10, 15, 30, 40, 55 |
| Sensor Output Type | Voltage |
| Output Details | +/- 5 VDC |
| Excitation Voltage | +/- 12 to +/- 18 |
| Operating Temperature Range °C | -18 to 70 |
| IP Rating | IP65 |
- Fully self-contained – connect to a DC power source and a readout or control device for a complete operating system
- High-level DC output signal proportional to sine of the angle of tilt
- ±1° to ±90° ranges available
- Extremely rugged, withstands 1500g shock
- Bore-hole mapping, dam and rock shifts and other geophysical, seismic and civil engineering studies
- Ballast transfer systems for offshore barges, ships and other marine applications
- Level control and calibration systems
- Pipeline levelling, setting tilt of grading machines, crane overturning-moment alarms, and other heavy duty construction control requirements
- Large machinery installation and other electronic level applications
- Electrical Cable (1m to 60m)
- DTI
- Power Supply
- Mating Connector
LSOC_P ‘L’ Series ±1° to ±90°
LSOC_P L Inclinometer Current output, connector termination ±1° to ±90°
Series is a range of gravity-referenced servo inclinometers used in a variety of industrial applications where high-precision angular measurements are required, and in rugged and robust applications where high levels of vibration and mechanical shock up to 1500g are encountered.
Models are available in a variety of ranges from +/-1° to +/-90° with 4 to 20mA output. Electrical terminations are via a 6-way connector on the LSOC or solder pins on the LSOP variant.
For more information on the LSOC_P ‘L’ Series,
| Dimensions | 92 × 43 × 40.76 mm |
| Axis | 1 |
| Degree | ±1°, ±3°, ±14.5° , ±30°, ±47°, ±90° |
| Resolution (arc seconds) | 0.1, 0.2, 1.0, 2.0, 4.0 |
| Frequency response (Hz) | 10, 15, 30, 40, 45, 55 |
| Sensor Output Type | Current |
| Excitation Voltage | 20 to 30 |
| Operating Temperature Range °C | -18 to 70 |
| IP Rating | IP65 |
- Available ranges from ±1° to ±90°
- Resolution to 0.1arc second (0.00003°)
- High level 4 to 20mA output proportional to sine of the angle of tilt
- Electrical terminations via six-way connector (LSOC) or solder pins (LSOP)
- Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
- Environmentally sealed to IP65
- Continuous operation in temperatures of -18°C to +70°C
- Rugged, 1500g shock survivability
- Optional mating connectors, power supplies and display indicators
- Custom design and manufacturing capabilities are available to meet customers specific application requirements
- Bore-hole mapping, dam and rock shifts and other geophysical, seismic and civil engineering studies
- Ballast transfer systems for offshore barges, ships and other marine applications
- Level control and calibration systems
- Pipeline leveling, setting tilt
- Electrical Cable (1m to 60m)
- DTI
- Power Supply
- Mating Connector

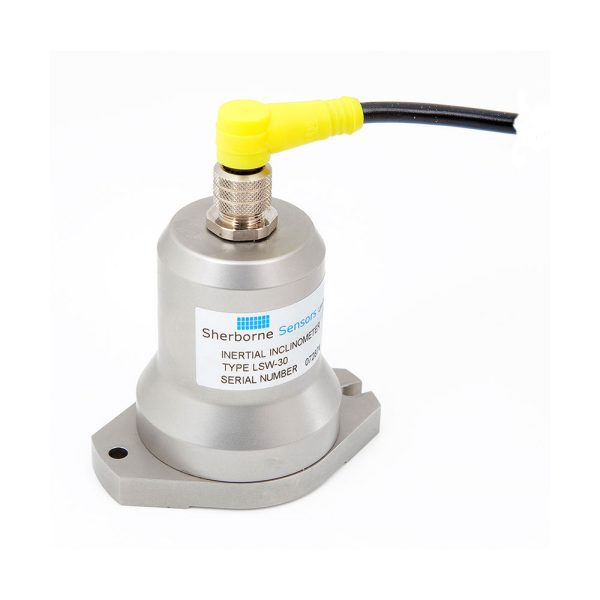

LSW Series ±3° to ±90°
LSW Weatherproof Servo Inclinometer, voltage output
The LSW Series are high precision closed-loop gravity referenced tilt sensors designed for demanding all-weather applications. The sensor is constructed from stainless steel and features a molded IP68 connector/cable system that can be field replaced if the cable becomes damaged. Models are available in a variety of angular ranges.
| Dimensions | 56 × 101.00 mm |
| Axis | 1 |
| Degree | ±3°, ±14.5°, ±30°, ±90° |
| Resolution (arc seconds) | 0.2, 1.0, 2.0, 4.0 |
| Frequency response (Hz) | 15, 30, 40, 55 |
| Sensor Output Type | Voltage |
| Output Details | +/- 5 VDC |
| Excitation Voltage | +/- 12 to +/- 18 |
| Operating Temperature Range °C | -18 to 70 |
| IP Rating | IP67 |
- Weatherproof to IP67* – stainless steel construction
- Waterproof molded cable system – field replaceable
- High level DC output signal proportional to sine of the angle of tilt
- ±3° to ±90° ranges available
- Extremely rugged, withstands 1500g shock
- Bore-hole mapping, dam and rock shifts and other geophysical and seismic studies
- Harsh environments where dust, water and or shock are present
- Offshore applications where robust, weatherproof
- Civil Engineering applications
T233 ‘L’ Series ±1° to ±90°
Dual Axi Inclinometer, 4 to 20 mA current o/p, ±3° to ±90°
The T233 ‘L’ Series is a range of dual axis gravity referenced servo inclinometers that is used in a variety of industrial applications where high precision angular measurements are required, and in rugged and robust applications where high levels of vibration and mechanical shock up to 1500g are encountered.
Models are available in a variety of ranges from +/-1 degree to +/-90 degrees with low impedance output 4 to 20 mA current signals and are precisely set up for dual-axis operation. Electrical terminations are via a connector on the T233L.
| Axis | 2 |
| Sensor Output Type | Current |
| Degree | ±1°, ±3°, ±14.5° , ±30°, ±90° |
| Resolution (arc seconds) | 0.1, 0.2, 1.0, 2.0, 4.0 |
| Frequency response (Hz) | 10, 15, 30, 40, 55 |
| Output Details | 16 (4-20mA) |
| Excitation Voltage | +/- 24 |
| Operating Temperature Range °C | -18 to 70 |
- Available ranges from ±1° to ±90°
- Resolution to 0.1arc second (0.00003°)
- High level 4 to 20 mA current output proportional to sine of the angle of tilt
- Electrical terminations via six-way connector (T233)
- Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
- Environmentally sealed to IP65
- Continuous operation in temperatures of -18°C to +70°C
- Rugged, 1250g shock survivability
- Optional mating connectors, power supplies and display indicators
- Custom design and manufacturing capabilities are available to meet customers specific application requirements
- Level control of machines and structures
- Safety control of cranes and lifting equipment
- Civil engineering studies
- Geophysical and seismic studies
- Machinery and structural alignment
- Pipeline leveling
- Marine ballast transfer systems
- Satellite antenna
- Electrical Cable (1m to 60m)
- DTI
- Power Supply
- Mating Connector

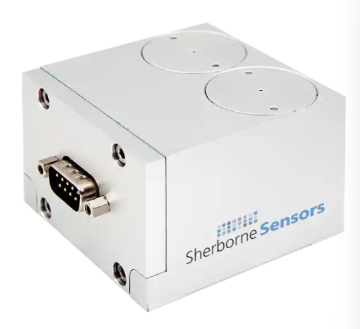

T233 Series ±1° to ±90°
Dual Axis Inclinometer, ±15Vdc input, voltage o/p, pin, ±3° to ±90°
The T233/5 Series is a range of dual axis gravity referenced servo inclinometers that is used in a variety of industrial applications where high precision angular measurements are required, and in rugged and robust applications where high levels of vibration and mechanical shock up to 1500g are encountered.
Models are available in a variety of ranges from +/-1 degree to +/-90 degrees with low impedance output voltage signals and are precisely set up for dual-axis operation. Electrical terminations are via a connector on the T233 or solder pins on the T235 variant.
| Axis | 2 |
| Degree | ±1°, ±3°, ±14.5° , ±30°, ±90° |
| Resolution (arc seconds) | 0.1, 0.2, 1.0, 2.0, 4.0 |
| Frequency response (Hz) | 10, 15, 30, 40, 55 |
| Sensor Output Type | Voltage |
| Output Details | +/- 5 VDC |
| Excitation Voltage | +/- 12 to +/- 18 |
| Operating Temperature Range °C | -18 to 70 |
- Available ranges from ±1° to ±90°
- Resolution to 0.1arc second (0.00003°)
- High level ±5 VDC output proportional to sine of the angle of tilt
- Electrical terminations via six-way connector (T233) or solder pins (T235)
- Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
- Environmentally sealed to IP65
- Continuous operation in temperatures of -18°C to +70°C
- Rugged, 1250g shock survivability
- Optional mating connectors, power supplies and display indicators
- Custom design and manufacturing capabilities are available to meet customers specific application requirements
- Level control of machines and structures
- Safety control of cranes and lifting equipment
- Civil engineering studies
- Geophysical and seismic studies
- Machinery and structural alignment
- Pipeline leveling
- Marine ballast transfer systems
- Satellite antenna
- Electrical Cable (1m to 60m)
- DTI
- Power Supply
- Mating Connector
T435 ‘L’ Series ±3° to ±90°
T435 Single Axis Inclinometer, 4-20 mA output, pin termination
The T435 ‘L’ series is a family of single-axis, high-precision, closed loop, gravity-referenced servo inclinometers. Ideal for use within a variety of application environments and where space is at a premium.
Available in ranges from ±3° to ±90° with a form factor measuring only 61mm (2.41 inches) high and a diameter measuring less than 37mm (1.46 inches). The T435 ‘L’ has a high-level 4-20mA signal, proportional to the size of the angle of tilt. Units are fully self-contained, and able to connect to a DC power source and readout or control device, to form a complete operating system. Units are extremely rugged and can withstand a 1500g shock event. Solder pin terminations are standard.
The 4-20mA output of the T435 ‘L’ series is specifically designed for electrically noisy environments, or where inclinometer output signals must travel over a long distance. T435 ‘L’ series inclinometers operate on a single 24Vdc supply and the output series load resistance can be as high as 400Ω. Sherborne Sensors inclinometers have a long and successful market history in precision tilt applications around the world.V
| Dimensions | 36 × 36 × 60.20 mm |
| Degree | ±3°, ±14.5° , ±30°, ±90° |
| Resolution (arc seconds) | 0.2, 1.0, 2.0, 4.0 |
| Frequency response (Hz) | 15, 30, 40, 55 |
| Sensor Output Type | Current |
| Output Details | 16 (4-20mA) |
| Excitation Voltage | +/- 24 |
- Available ranges from ±3° to ±90°
- Resolution to 0.2arc second (0.00006°)
- High level 4 to 20mA output proportional to sine of the angle of tilt
- Electrical terminations via solder pins
- Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
- Environmentally sealed to IP65
- Continuous operation in temperatures of -18°C to +70°C
- Rugged, 1500g shock survivability
- Optional power supplies and display indicators
- Custom design and manufacturing capabilities are available to meet customers specific application requirements
- Bore hole mapping, dam and rock shifts and other geophysical, seismic & civil engineering studies
- Downhole logging
- Any precision measurement application where space is at a premium
- DTI
- Power Supply
