HBK, 무선시스템,

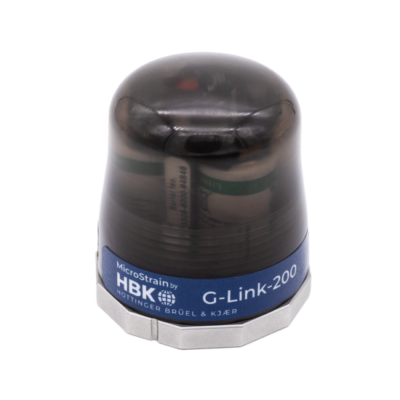

G-Link-200-8G / Wireless 8G Accelerometer Sensor Node /

On-board triaxial accelerometer with +/- 2, +/- 4, or +/- 8 g measurement range
Continuous, periodic burst, and event-triggered sampling
Output acceleration or derived vibration parameters (Vrms, Arms, App, Crest Factor)

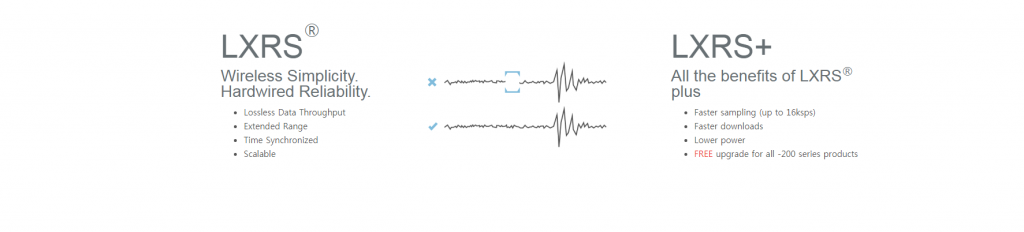

LXRS protocol allows lossless data collection, scalable networks, and node synchronization of ±50 μs.
1 Sample per hour to 4096 Samples per second
Ruggedized IP-67 rated enclosure

G-Link-200-40G / Wireless 40G Accelerometer Sensor Node /

On-board triaxial accelerometer with ±10, ±20, or ±40 g measurement range
Continuous, periodic burst, and event-triggered sampling
Output raw acceleration waveform data or derived vibration parameters (Velocity, Amplitude, Crest Factor)
LXRS protocol allows lossless data collection, scalable networks, and node synchronization of ±50 µs.
1 Sample per hour to 4096 Samples per second
Ruggedized IP-67 rated enclosure;;;;

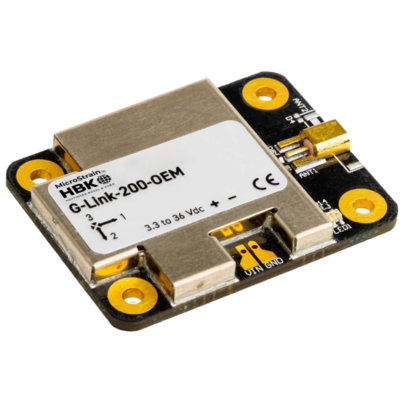

G-Link-200-OEM / G-Link-200 OEM version (±2g or ±40g) /

On-board triaxial accelerometer with ±2 to ±40 g measurement range
Continuous, periodic burst, and event-triggered sampling
Output raw acceleration waveform data or derived vibration parameters (Velocity, Amplitude, Crest Factor)
1 Sample per hour to 4096 Samples per second
Wide input voltage from 3.3 to 36 V

G Link 200 Data Sheet_0.pdf

0.34MB

G_Link_200_OEM_Data_Sheet-3680399.pdf

0.40MB

G-Link-200-User-Manual-(8500-0069)-Rev-M.pdf

12.46MB

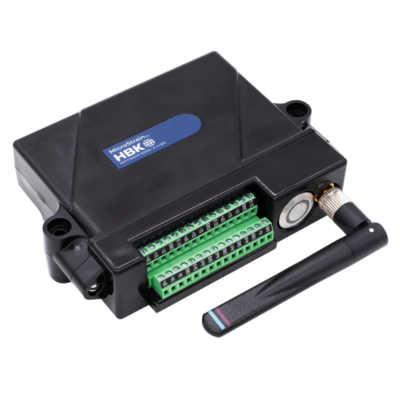

V-Link-200 / Wireless 8 Channel Analog Input Sensor Node /

8x higher sample rate (up to 4,096 Hz), 4x more resolution (18-bit)
Dual power options (long-life battery and hardwired)
Four ±150 mVDC fully differential inputs, Four ±10 VDC single-ended inputs
Onboard memory for 8m data points

v-link_200_datasheet_8400-0097_rev_k.pdf

0.71MB

v-link-200_user_manual_8500-0063_rev_k.pdf

3.43MB

SG-Link-200 / Wireless 3 Channel Analog Input Sensor Node /

3 differential input channels
1.5 or 2.5 V sensor power output
High resolution 24-bit data
Compatible with 120, 350, and 1kOhm Wheatstone bridge sensing circuits
Remote strain calibration using on-board shunt resistor
Up to 1 kHz continuous sampling rate
Weatherproof IP-68
Datalogging up to 8 million data points

SG-Link-200 Data Sheet_0.pdf

0.44MB

sg-link200_user_manual_8500-0020_rev.pdf

2.58MB

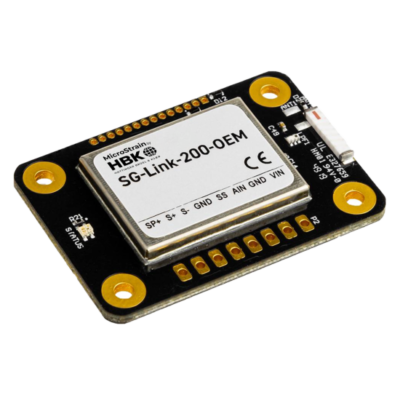

SG-Link-200-OEM / SG-Link-200 OEM version /

Up to 1024 Hz sampling
Low noise 1.5 or 2.5 V sensor excitation
Noise as low as 1 µV p-p
High resolution 24-bit data
Datalog up to 8 million data points
Low power operation, well-suited for battery powered applications.
Wireless range up to 1 km (400 m typical)
-40 to +105° C operating temperature range

sg-link200_user_manual_8500-0020_rev.pdf

2.58MB

sg-link-200-oem_datasheet.pdf

0.57MB

TC-Link-200 / Wireless 12 Channel Thermocouple Input Sensor Node /

12 input channels for thermocouples or differential voltage
Compatible thermocouples types: J, K, N, R, S, T, E, B
Onboard temperature calculation using NIST 9th order polynomial
Onboard cold-junction compensation
Open-circuit (burnout) detection
Differential voltage range from +/- 19.5mV to +/- 1.25 V
Low drift over time and temperature
Digital filtering for up to 120 dB rejection of 50 and 60 Hz noise

tc-link-200-oem_user_manual_8500-0095.pdf

6.53MB

TC-Link-200-OEM-Data-Sheet.pdf

0.39MB

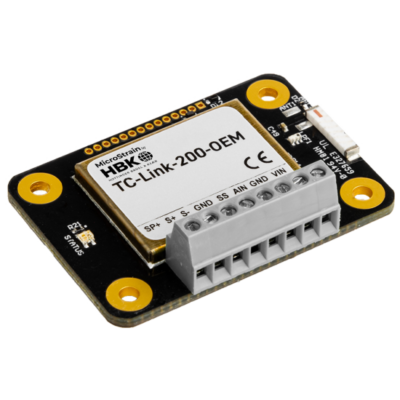

TC-Link-200-OEM / 1 ch supporting Thermocouples, Resistance Thermometers and Thermistors /

Up to 128 Hz sampling
High resolution 24-bit data
Digital filtering for up to 120 db rejection of 50 and 60 Hz noise
Datalog up to 8 million data points
Duty Cycle sensor excitation for low power operation, well-suited for battery powered applications
Supply power from 3.3 to 30 V
On-board linearization algorithms supporting a wide range of temperature transducers

tc-link-200-oem_user_manual_8500-0095.pdf

6.53MB

TC-Link-200-OEM-Data-Sheet.pdf

0.39MB

RTD-Link-200 / Wireless 6 Channel Temperature Node (RTD or Thermistor) /

6 input channels for RTD, thermistor, or other resistive sensor
Temperature calculation using NIST 9th order polynomial
Compatible RTD’s: PT-10, PT-50, PT-100, PT-200, PT-500, PT1000
Compatible thermistors: 44004, 44033, 44005, 44030, 44006, 44031, 44007, 44034, 44008, 44032, YSI-400
High resolution 24-bit data
Up to 64 Hz sampling rate

rtd-link-200_qsg_8501-0103_rev_b.pdf

1.89MB

RTD-Link-200-Data-Sheet.pdf

0.56MB

WSDA-2000 / Sophisticated Data Aggregation with J1939 and Ethernet Interfaces /

Compatible with LORD Sensing LXRS and LXRS+ sensor nodes
USB and Ethernet-based gateway configures, coordinates, and collects sensor data from a scalable network of wireless sensor nodes
Configurable to operate with a static IP, a DHCP-enabled LAN, or as a datalogger to local memory
Push all or selected sensor data to a J1939 CAN bus
Seamless integration with SensorCloud™ for secure, webbased data access from around the world

WSDA-2000_0.pdf

0.42MB

WSDA-200-USB / USB Gateway /

Data acquisition gateway collects synchronized data from scalable networks of wireless sensors
Provides seamless communication between the wireless sensor nodes and host computer
Quick deployment with host computer interface
Compatible with all LORD Sensing LXRS and 200 Series sensing nodes
